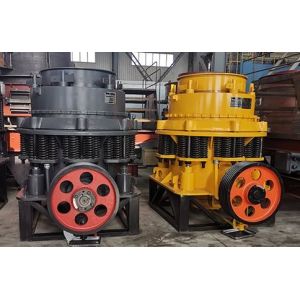

PSG Simmons Crusher Stone Crusher Machine Used In Metallurgy And Mining Industry
1. Product parameters of cone crusher Stone Crusher Machine
| Spec | Model | Cavity type | Diameter of large end of crushing cone(mm) | Discharge port adjustment range
(mm) | The feeding size of the opening edge at the minimum discharge port(mm) | Maximum feeding size
(mm) | Capacity (t/h) | Main motor power(kw) | Weight
(kg) | Dimension
(mm) |
| 2'FT | PSGB-0607 | Standard fine type | 600 | 6-38 | 70 | 60 | 16-50 | 30 | 4500 | 2195×1158×1651 |
| 2'FT | PSGB-0609 | Standard medium size | 600 | 10-38 | 95 | 80 | 18-65 | 30 | 4500 | 2195×1158×1651 |
| 2'FT | PSGB-0611 | Standard coarse shape | 600 | 13-38 | 110 | 90 | 22-70 | 30 | 4500 | 2195×1158×1651 |
| 2'FT | PSGD-0603 | Short head thin type | 600 | 3-13 | 35 | 30 | 9-35 | 30 | 4500 | 2195×1158×1651 |
| 2'FT | PSGD-0605 | Short head thick type | 600 | 5-16 | 50 | 40 | 22-70 | 30 | 4500 | 2195×1158×1651 |
| 3'FT | PSGB-0910 | Standard fine type | 900 | 9-22 | 102 | 85 | 45-91 | 75 | 9980 | 2656×1636×2241 |
| 3'FT | PSGB-0917 | Standard coarse shape | 900 | 13-38 | 175 | 150 | 59-163 | 75 | 9980 | 2656×1636×2241 |
| 3'FT | PSGB-0918 | Standard extra thick type | 900 | 25-38 | 178 | 150 | 118-163 | 75 | 9980 | 2656×1636×2241 |
| 3'FT | PSGD-0904 | Short head thin type | 900 | 3-13 | 41 | 35 | 27-90 | 75 | 10530 | 2656×1636×2241 |
| 3'FT | PSGD-0906 | Short head medium | 900 | 3-16 | 76 | 65 | 27-100 | 75 | 10530 | 2656×1636×2241 |
| 3'FT | PSGD-0907 | Short head thick type | 900 | 6-19 | 102 | 85 | 59-129 | 75 | 10530 | 2656×1636×2241 |
| 4.25'FT | PSGB-1313 | Standard fine type | 1295 | 13-31 | 137 | 115 | 109-181 | 160 | 22460 | 2983×1866×3156 |
| 4.25'FT | PSGB-1321 | Standard medium size | 1295 | 16-38 | 210 | 178 | 132-253 | 160 | 22460 | 2983×1866×3156 |
| 4.25'FT | PSGB-1324 | Standard coarse shape | 1295 | 19-51 | 241 | 205 | 172-349 | 160 | 22460 | 2983×1866×3156 |
| 4.25'FT | PSGB-1325 | Standard extra thick type | 1295 | 25-51 | 259 | 220 | 236-358 | 160 | 22460 | 2983×1866×3156 |
| 4.25'FT | PSGD-1306 | Short head thin type | 1295 | 3-16 | 64 | 54 | 36-163 | 160 | 22590 | 2983×1866×3156 |
| 4.25'FT | PSGD-1308 | Short head medium | 1295 | 6-16 | 89 | 76 | 82-163 | 160 | 22590 | 2983×1866×3156 |
| 4.25'FT | PSGD-1310 | Short head thick type | 1295 | 8-25 | 105 | 89 | 109-227 | 160 | 22590 | 2983×1866×3156 |
| 4.25'FT | PSGD-1313 | Short head extra thick type | 1295 | 16-25 | 133 | 113 | 209-236 | 160 | 22590 | 2983×1866×3156 |
| 5.5'FT | PSGB-1620 | Standard fine type | 1676 | 16-38 | 209 | 178 | 181-327 | 250 | 43270 | 3941×2954×3771 |
| 5.5'FT | PSGB-1624 | Standard medium size | 1676 | 22-51 | 241 | 205 | 258-417 | 250 | 43270 | 3941×2954×3771 |
| 5.5'FT | PSGB-1626 | Standard coarse shape | 1676 | 25-64 | 269 | 228 | 299-635 | 250 | 43270 | 3941×2954×3771 |
| 5.5'FT | PSGB-1636 | Standard extra thick type | 1676 | 38-64 | 368 | 313 | 431-630 | 250 | 43270 | 3941×2954×3771 |
| 5.5'FT | PSGD-1607 | Short head thin type | 1676 | 5-13 | 70 | 60 | 90-209 | 250 | 43870 | 3941×2954×3771 |
| 5.5'FT | PSGD-1608 | Short head medium | 1676 | 6-19 | 89 | 76 | 136-281 | 250 | 43870 | 3941×2954×3771 |
| 5.5'FT | PSGD-1613 | Short head thick type | 1676 | 10-25 | 133 | 113 | 190-336 | 250 | 43870 | 3941×2954×3771 |
| 5.5'FT | PSGD-1614 | Short head extra thick type | 1676 | 13-25 | 133 | 113 | 253-336 | 250 | 43870 | 3941×2954×3771 |
| 7'FT | PSGB-2127 | Standard fine type | 2134 | 19-38 | 278 | 236 | 544-1034 | 400 | 86730 | 4613×3302×4638 |
| 7'FT | PSGB-2133 | Standard medium size | 2134 | 25-51 | 334 | 284 | 862-1424 | 400 | 86730 | 4613×3302×4638 |
| 7'FT | PSGB-2136 | Standard coarse shape | 2134 | 31-64 | 369 | 314 | 1125-1814 | 400 | 86730 | 4613×3302×4638 |
| 7'FT | PSGB-2146 | Standard extra thick type | 2134 | 38-64 | 460 | 391 | 1252-1941 | 400 | 86730 | 4613×3302×4638 |
| 7'FT | PSGD-2110 | Short head thin type | 2134 | 5-16 | 105 | 89 | 218-463 | 400 | 89500 | 4613×3302×4638 |
| 7'FT | PSGD-2113 | Short head medium | 2134 | 10-19 | 133 | 113 | 404-580 | 400 | 89500 | 4613×3302×4638 |
| 7'FT | PSGD-2117 | Short head thick type | 2134 | 13-25 | 178 | 151 | 517-680 | 400 | 89500 | 4613×3302×4638 |
| 7'FT | PSGD-2120 | Short head extra thick type | 2134 | 16-25 | 203 | 172 | 580-744 | 400 | 89500 | 4613×3302×4638 |
Company Information Luoyang Zhongtai Industrial Co., Ltd. is located in Luoyang National University Science Park, Longyu Road, Jianxi District, Luoyang City, Henan Province. It is a professional company integrating development, design, installation, commissioning, sales and technical services of mining machinery products. Business scope includes: mining equipment, metallurgical equipment, construction equipment, construction machinery, power machinery, stone chemical equipment, electrical equipment, agricultural machinery, hydraulic equipment and accessories, refractory materials, warehouse color, casting and forging sales, mechanical equipment, energy-saving and environmental protection equipment technology research and development, consultation, installation, maintenance, project contracting. Our company has independent legal personality and foreign trade import and export business qualification, engaged in import and export business of goods and technology.
Depending on our company's strong scientific research ability and production and sales ability, relying on advanced and mature production technology in Luoyang mining machinery industry cluster area, we have cooperated with major well-known enterprises at home and abroad to provide technical services and complete sets of equipment for key projects in national mining, metallurgy, building materials, lifting, electric power, non-ferrous metals, environmental protection, chemical industry, petroleum and other industries. Spare parts. Relying on innovative technology, new products and perfect after-sales service, the company has won the trust and support of more and more domestic and foreign customers.
